DSR2005R5

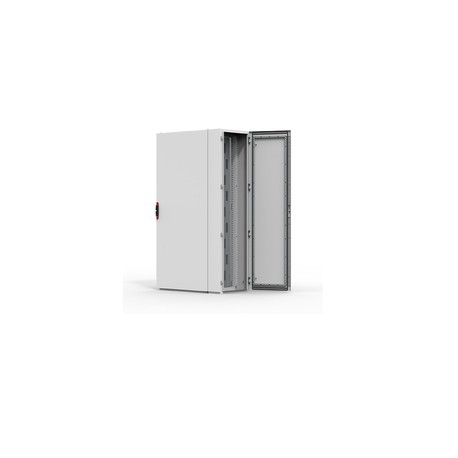

DSR2005R5 ELDON Raised side door, 2000x500 DSR2005R5
$0.00USD
4666 स्टकमा
मुख्य विशिष्टताहरू
लाभ: (विशेषताहरू):The user can connect external equipment in the cable chamber. This allows easy access without opening the enclosure's front door. The marshalling plate, MM is used when 24 pin. Connectors need to be installed
सुविधा: (विशेषताहरू):Side cable chamber, with door and cable entry in both the top and bottom for combinable floor standing enclosures.
फाइदा: (विशेषताहरू):The cable chamber provides additional space for cables and can be mounted onto the side of single or bayed enclosures allowing side access. The chamber is usually segregated from the enclosure by using a marshalling plate, MM, where connectors will be mounted and wired to the enclosure awaiting for connections to be made from the cable chamber.
समाप्त: (प्राविधिक डेटा):RAL 7035 structured powder coating.
आपूर्तिकर्ता जानकारी
ELDON
उत्पादहरू: 4827
सामान्यतया २-३ कार्यदिवसभित्र पठाइन्छ
गुणस्तर ग्यारेन्टी
छिटो शिपिङ
प्राविधिक सहयोग
प्राविधिक विशिष्टताहरू
| प्यारामीटर | मूल्य |
|---|---|
| लाभ: (विशेषताहरू) | The user can connect external equipment in the cable chamber. This allows easy access without opening the enclosure's front door. The marshalling plate, MM is used when 24 pin. Connectors need to be installed |
| सुविधा: (विशेषताहरू) | Side cable chamber, with door and cable entry in both the top and bottom for combinable floor standing enclosures. |
| फाइदा: (विशेषताहरू) | The cable chamber provides additional space for cables and can be mounted onto the side of single or bayed enclosures allowing side access. The chamber is usually segregated from the enclosure by using a marshalling plate, MM, where connectors will be mounted and wired to the enclosure awaiting for connections to be made from the cable chamber. |
| समाप्त: (प्राविधिक डेटा) | RAL 7035 structured powder coating. |
| सामग्री: (प्राविधिक डेटा) | 1.75 mm steel plate. |
| सुरक्षा: (प्राविधिक डेटा) | Complies with IP 33 TYPE 1 with MM connector plate and gasket SPDG01. Door frame optional. |
| विवरण: (प्राविधिक डेटा) | A 200 mm wide cover with cable entrances in top and bottom. Supplied with one gland plate and gasket material. Hole pattern equals enclosure's frame to mount cable fixing bars. |
| प्याक मात्रा: (प्राविधिक डेटा) | 1 piece with mounting accessories. |
| माउन्टिंग आवश्यकताहरू: (प्राविधिक डेटा) | Add a separation plate SPD or marshalling plate MM to mount connectors and separate the side compartment. |
उत्पादन विवरण
The side cable chamber allows for external equipment to be easily connected within it, eliminating the need to open the enclosure's door.
मुख्य विशेषताहरू
- औद्योगिक स्तरको गुणस्तर
- RoHS अनुरूप
- सीई प्रमाणित
- १-वर्षीय वारंटी
प्राविधिक विवरणहरू
Description:
