2CDS271001R0034

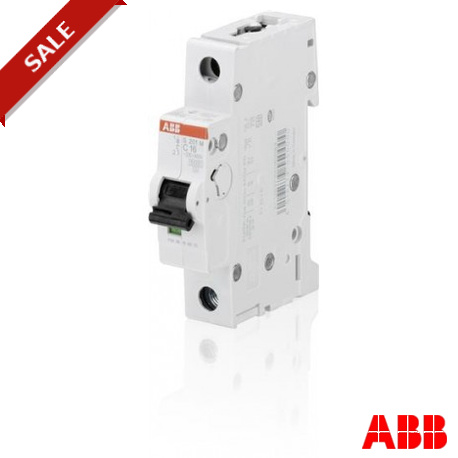

S201M-C3 2CDS271001R0034 ABB Miniature Circuit Breaker S200M 1P C 3 A
$0.00USD
4861 स्टकमा
मुख्य विशिष्टताहरू
पहिचानकर्ता (उपसाधनहरू):Type
2CCA880100R0001 (उपसाधनहरू):CMS-100PS
2CCA880101R0001 (उपसाधनहरू):CMS-101PS
2CCA880102R0001 (उपसाधनहरू):CMS-102PS
आपूर्तिकर्ता जानकारी
ABB
उत्पादहरू: 44170
सामान्यतया २-३ कार्यदिवसभित्र पठाइन्छ
गुणस्तर ग्यारेन्टी
छिटो शिपिङ
प्राविधिक सहयोग
प्राविधिक विशिष्टताहरू
| प्यारामीटर | मूल्य |
|---|---|
| पहिचानकर्ता (उपसाधनहरू) | Type |
| 2CCA880100R0001 (उपसाधनहरू) | CMS-100PS |
| 2CCA880101R0001 (उपसाधनहरू) | CMS-101PS |
| 2CCA880102R0001 (उपसाधनहरू) | CMS-102PS |
| 2CDS200909R0001 (उपसाधनहरू) | S2C-A1 |
| 2CDS200909R0002 (उपसाधनहरू) | S2C-A2 |
| 2CDS200912R0001 (उपसाधनहरू) | S2C-H6R |
| 2CDS200918R0001 (उपसाधनहरू) | S2C-NT |
| 2CDS200922R0001 (उपसाधनहरू) | S2C-S/H6R |
| 2CDS200936R0001 (उपसाधनहरू) | S2C-H11L |
| 2CDS200936R0002 (उपसाधनहरू) | S2C-H20L |
| 2CDS200936R0003 (उपसाधनहरू) | S2C-H02L |
| 2CDS200946R0001 (उपसाधनहरू) | S2C-H6-11R |
| 2CDS200946R0002 (उपसाधनहरू) | S2C-H6-20R |
| 2CDS200946R0003 (उपसाधनहरू) | S2C-H6-02R |
| 2CDS200970R0001 (उपसाधनहरू) | S2C-H01 |
| 2CDS200970R0002 (उपसाधनहरू) | S2C-H10 |
| 2CSS200911R0001 (उपसाधनहरू) | S2C-UA 12 DC |
| 2CSS200911R0002 (उपसाधनहरू) | S2C-UA 24 AC |
| 2CSS200911R0003 (उपसाधनहरू) | S2C-UA 48 AC |
| 2CSS200911R0004 (उपसाधनहरू) | S2C-UA 110 AC |
| 2CSS200911R0005 (उपसाधनहरू) | S2C-UA 230 AC |
| 2CSS200911R0006 (उपसाधनहरू) | S2C-UA 400 AC |
| 2CSS200911R0007 (उपसाधनहरू) | S2C-UA 24 DC |
| 2CSS200911R0008 (उपसाधनहरू) | S2C-UA 48 DC |
| 2CSS200911R0009 (उपसाधनहरू) | S2C-UA 110 DC |
| 2CSS200911R0010 (उपसाधनहरू) | S2C-UA 230 DC - Undervoltage release |
| 2CSS200998R0001 (उपसाधनहरू) | S2C-BP - Mechanical tripping device |
| 2CSS200999R0001 (उपसाधनहरू) | S2C-EST - Plug-in base |
| 2CSS201997R0013 (उपसाधनहरू) | S2C-CM1 - Motor operating device |
| 2CSS203997R0013 (उपसाधनहरू) | S2C-CM2/3 |
| 2CSS204997R0013 (उपसाधनहरू) | S2C-CM4 - Motor operating device |
| GHS2001901R0003 (उपसाधनहरू) | S2C-DH |
उत्पादन विवरण
More details
मुख्य विशेषताहरू
- औद्योगिक स्तरको गुणस्तर
- RoHS अनुरूप
- सीई प्रमाणित
- १-वर्षीय वारंटी
प्राविधिक विवरणहरू
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
उत्पादन कागजातहरू
डेटासिट
प्राविधिक विशिष्टताहरू र प्रदर्शन डेटा
प्रयोगकर्ता म्यानुअल
स्थापना र सञ्चालन मार्गनिर्देश
